Thiết bị lưu trữ Qnap VS-8148U-RP Pro+
Giá bán: 166,697,440₫
- Processor : Processor Dual Core Intel Core™ i3-2120 Processor 3.3 GHz
- HDD Capacity : 8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
- Hard Drive Tray : 8 x hot-swappable and lockable tray
- LAN Port : 2 x Gigabit RJ-45 Ethernet port
- LED Indicators : 10 GbE (reserved), Status, LAN, eSATA (reserved), hard drives
- Hãng sản xuất : Qnap
- Xuất xứ : Chính hãng
- Bảo hành : 12 tháng
- Trạng thái : Còn hàng
- VAT : Đã bao gồm VAT
F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín
Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội
Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng
HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM

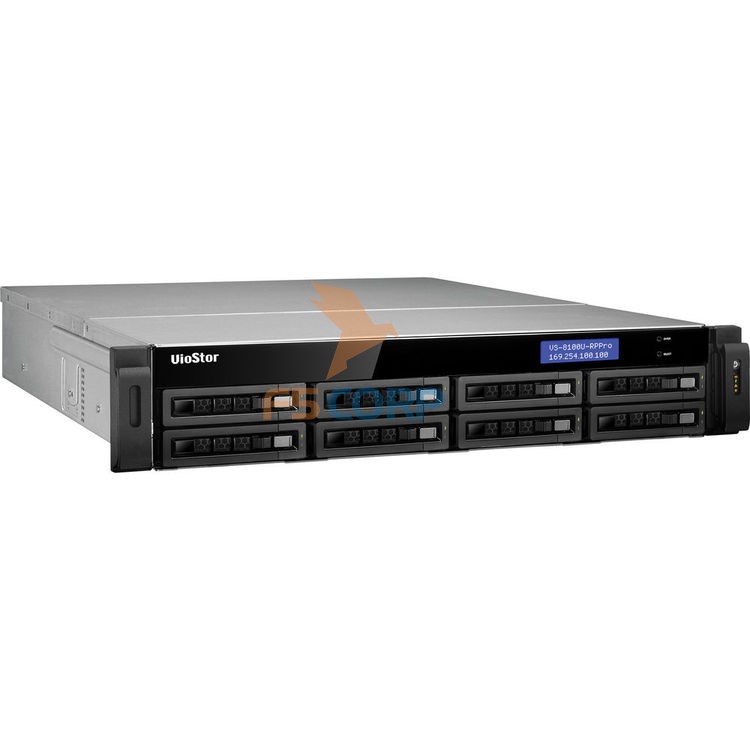

The Qnap VS-8148U-RP 48-Channel Pro VioStor NVR is an all-in-one 8-bay network surveillance server that supports network-based recording of IP cameras, video recording, playback, and remote data access. This NVR lets you record in H.264, MPEG-4, MxPEG, and M-JPEG formats from up to 48 IP cameras from various manufacturers.
The NVR's Linux-based OS and powerful Intel dual-core processor ensure that you get reliable performance even when recording from multiple megapixel cameras simultaneously. When used with multiple Qnap servers, the VioStor NVR allows monitoring of up to 128 IP cameras. In addition to offering diversified display modes, this NVR supports various recording features such as scheduled recording, alarm recording, and alarm recording schedule. The NVR also lets you search videos data by date, time, timeline, and event.
Equipped with 8 HDD bays with a maximum storage capacity of 24 TB, the VS-8140U-RP PRO VioStor NVR meets the growing demand for storing videos and photos in high-definition. Advanced RAID technology with a hot-swap design ensures uninterrupted system operation and minimizes the chance of video loss due to hard drive failure.
Surveillance
- Recording
- High-quality H.264, MPEG-4, M-JPEG, and MxPEG recording
- All-in-One Recording Functions
- Continuous, manual, schedule recording, alarm recording (by multiple events), and alarm recording schedule, pre-alarm and post-alarm recording, and audio recording 1
- Megapixel Recording
- Supports up to 10 MP recording from various IP cameras
- Generic IP Cameras Support
- Provides an interface for the users to enter the JPEG CGI command of their IP cameras to retrieve the video and audio data from the IP cameras
- Real-Time Digital Watermarking
-
Protects videos and snapshots from unauthorized access
Watermark proof utility to verify whether or not videos and snapshots are original
PC-Less Network Surveillance by HD Local Display via VGA Connector
- Diversified Modes for Local Monitoring
- 1, 4, 6, 8, 9, 10, or 12-channel display mode and also supports sequential display mode
- Local Monitoring Enhancement
- Full screen display, event notification, PTZ control, digital zoom
- High-Resolution Local Display
- VioStor NVR supports widescreen VGA monitor or TV of different resolutions, up to full HD (1920 x 1080)
- Convenient Control of PTZ and Speed Dome Cameras
- Allows adjustment of the PTZ cameras directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR
- Digital Zoom
- Allows you to zoom the video image in and out for flexible monitoring and playback
- On-Screen Event Alert
- Instantly displays an alert icon on the local monitoring page in case of an event occurrence
- Video Search
- Provides convenient video search by date and time on the local playback interface
- Quick System Setup
- Can be set up in few simple steps on a local display interface
Network Surveillance by Web-Based Interface
- Multi-Server Monitoring
- Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over LAN or WAN by an IE browser
- Diversified Remote Monitoring Modes
- 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, or 42-channel and sequential display mode also supports Picture-in-Picture and multi-display modes
- Preset Position Control
- Different preset positions of the camera can be viewed, using the number buttons on the monitoring page
- Auto Cruising
- PTZ cameras can be configured to cruise according to the preset positions and the staying time set for each preset position
- Dynamic E-Map
- Allows you to upload digital maps and indicate the locations of the IP cameras of a monitoring location or region
Remote Video Playback
- Multi-View Playback
- Divides a video into multiple sessions equally for playback in a multi-view window as well as enables you play videos of multiple IP cameras in the multi-view window simultaneously
- Advanced Video Search
- Easy data search by date, time, timeline, event, and intelligent video analytics (IVA) such as motion detection, missing object, foreign object, out of focus, camera occlusion, etc.
- Event Management
-
- Events include motion detection, alarm input, connection failure, recording failure, and user-defined event
- Triggered actions include video recording, e-mail alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action
- Real-time SMS and e-mail alert in case of system error or emergent events, SMS, and alert e-mails are sent to the administrator immediately
- Pre-alarm and post-alarm recording
Convenient Backup Solution
- Scheduled Remote Replication
- Supports scheduled remote replication for secure data backup to a remote QNAP NAS on the local network
- One-Touch Auto Video Backup
- One-touch audio video button configuration on the front of the NVR to copy the data from the NVR to an external storage device
Security Control
- Authority Management
- You can create different user groups i.e. administrator, system manager, and user and also assign different rights for monitoring, playback, PTZ control, and audio monitoring
- Auto Log off
- Allows you to set a timeout period to log off the users
- Host Access Control
- Specify the host or IP connections to allow or deny access to the NVR
- On-Line User List
- Allows you to view the record of users currently logged on and those that had previously logged on to the NVR
- Detailed Event Logs
- Offers detailed event logs of system warning, hard disk error, network disconnection, UPS status, users' networking services and recordings access record
High Reliability and Smart Features
- Advanced RAID with Hot-Swap Design
- Supports RAID 0, 1, 5, 6, 5+ hot spare, 6+ hot spare, single, and JBOD disk configurations, and its hot-swap design allows a failed drive of a disk volume, RAID 1 or above, to be replaced by hot swapping without turning off the NVR
- Online RAID Capacity Expansion
- Can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives without turning off the NVR during the process
- Online RAID Level Migration
- Upgrade the disk configuration to higher RAID level with the data retained without turning off the NVR
- S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology)
- Helps the administrator monitor the hard disk drives status
- HDD Health Scanning (HHS)
- Allows disk checking and bad blocks scanning
- Intelligent Automatic System Startup
- System turns on automatically when power resumes after a power outage
- UPS Support for 24/7 Service
- Supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outage
- DOM Architecture with Embedded Fail-Safe Dual OS
- All the applications are embedded on the DOM. Since the NVR allows the system to boot without accessing the physical disk sectors, system startup is not interrupted due to any bad block sectors or file errors on the hard drives; two operating systems offer alternative system booting options upon every system startup - if one fails, the other will be used to boot up instead and the failed OS is recoverable from the other healthy OS
Network Services
- Failover
- LAN ports of the VioStor NVR can be configured in failover mode, which allows the NVR to sustain the failure of one network interface and provide continuous services
- Load Balancing
- LAN ports of the VioStor NVR can be configured in load balancing mode for bandwidth aggregation to boost file transfer speeds; works with managed Ethernet switch with 802.3ad configured
- Multi-IP Settings
- 2 IP settings can be configured on the NVR to allow network access from 2 different subnets
- Built-In DDNS Service
- A unique domain name can be registered from a DDNS service provider and assigned to the NVR
- Built-In NTP Server
- Allows the connected IP cameras to synchronize their date and time settings with the NVR
- Convenient Data Access
- You can access the recording data on the NVR through the Network Neighborhood (SMB/ CIFS), Web File Management (HTTP), or FTP server
Easy Configuration and Management
- Simple System Setup
- Can be set up in 6 simple steps by the local display or web-based interface (Internet Explorer)
VS-8148U-RP Pro Specifications | |
---|---|
Processor | Processor Dual Core Intel Core™ i3-2120 Processor 3.3 GHz |
HDD Capacity |
8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD. |
Hard Drive Tray | 8 x hot-swappable and lockable tray |
LAN Port | 2 x Gigabit RJ-45 Ethernet port |
LED Indicators | 10 GbE (reserved), Status, LAN, eSATA (reserved), hard drives |
USB |
2 x USB 3.0 port (rear) 4 x USB 2.0 port (rear) Support USB pen drive, USB hub, and USB UPS etc. |
Buttons | Power button, reset button |
Alarm Buzzer | System warning |
Form Factor | 2U, Rack mountable |
Dimensions |
88(H) x 439(W) x 520(D) mm 3.46(H) x 17.28(W) x 20.47(D) inch |
Weight |
Net weight: 12.52 kg (27.61 lb) Gross weight: 23.42 kg (51.63 lb) |
Temperature | 0~40˚C / 32~104˚F |
Relative Humidity | 0~90% R.H. |
Power Supply |
Input: 100-240V AC, 47-63Hz, Output: 300W |
Power Consumption (W) | 130W Write/Read (with 8 x 1TB HDD installed) |
Expansion Slot | 2 (reserved for network and storage expansion) |
Video Output | 1x VGA |
Fan | 3 x 6cm smart cooling fan |
Certification | CE, FCC, VCCI, BSMI, LVD |
Package Contents |
|
