Thiết bị lưu trữ Qnap VS-8124U-RP Pro+

Giá bán: 138,744,760₫

Processor : Dual Core Intel Core™ i3 3.3GHz Processor
DRAM : 4GB DDR3 RAM
HDD Capacity : 8 x 3.5” SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
Hard Drive Tray : 8 x hot-swappable and lockable tray
LAN Port : 4 x Gigabit RJ-45 Ethernet port

Hãng sản xuất : Qnap
Xuất xứ : Chính hãng
Bảo hành : 12 tháng
Trạng thái : Còn hàng
VAT : Đã bao gồm VAT

Mua ngay Giao tận nơi

F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín

Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội

Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng

HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM

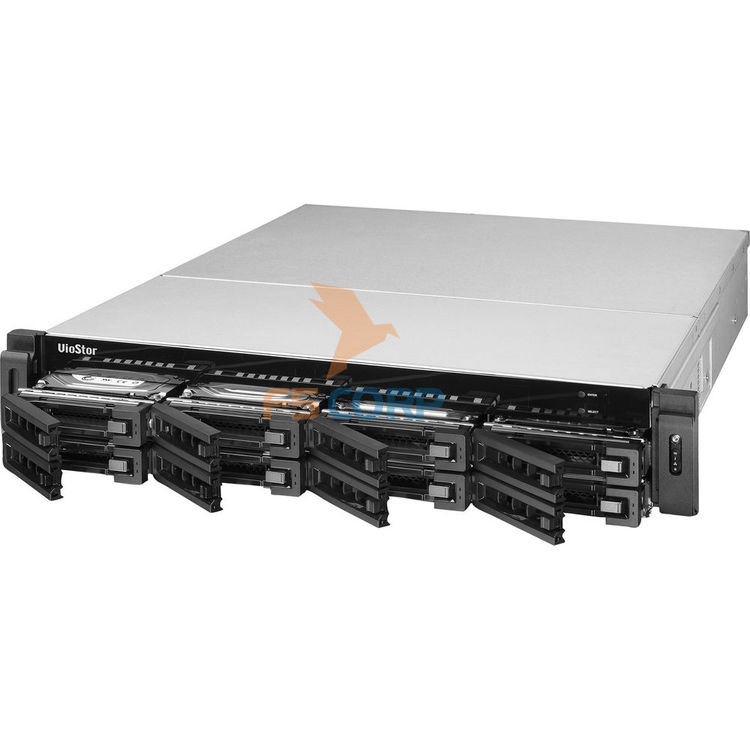

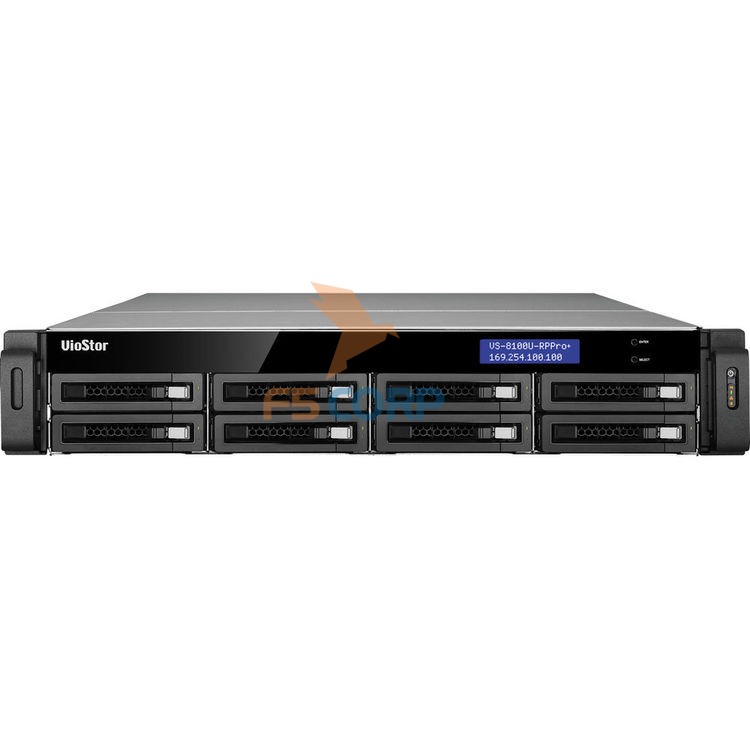

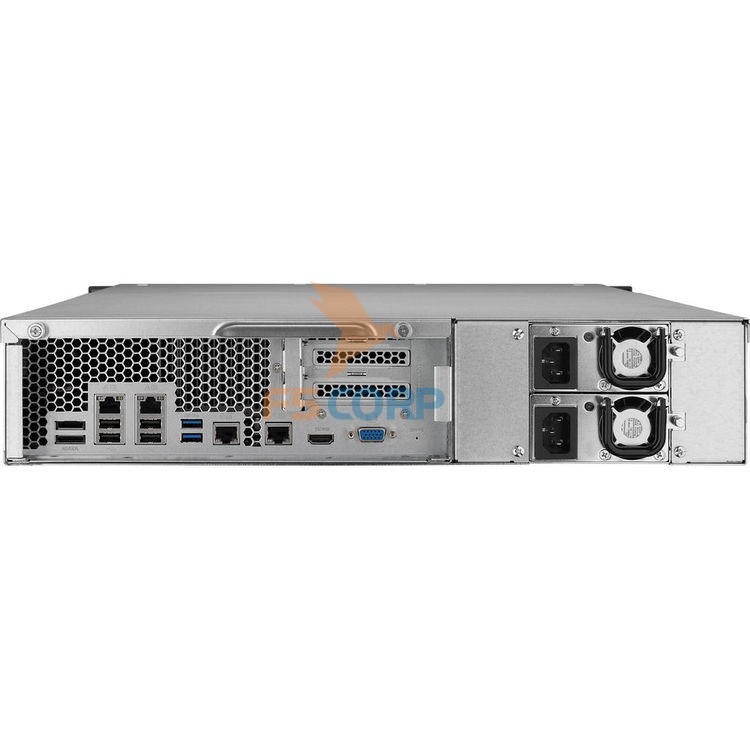

The Qnap VS-8124U-RP Pro+ 24-Channel 8-Bay 2U VioStor NVR is a high-end 2U chassis network surveillance server which supports high quality real-time video/audio monitoring, megapixel recording (up to 10 Mp), and playback of multiple IP cameras. The VioStor VS-8124U-RP Pro+ can simultaneously handle inputs from up to 24 Mp cameras. Featuring a powerful dual-core Intel Core i3 processor and 4GB of DDR3 memory, this enterprise-grade NVR delivers high performance with throughput of 400 Mb/s for recording and smooth playback of multiple megapixel cameras. Moreover, the HDMI output and hardware decoder of VS-8124U-RP Pro+ provide the ability to deliver up to 300fps full HD local display.

The VioStor VS-8124U-RP Pro+ supports up to 32 TB storage capacity, which makes it proficient for continuous recording of high-resolution video. Also, this Linux-based NVR enables quick and easy deployment of multiple NVRs. It is designed with the user in mind, offering simple and intuitive setup in six steps. Coupled with powerful performance and stability, this solution is tailor-made for enterprise surveillance needs.

Note: HDD is sold separately.
The rack kits for the VS-8100U-RP Pro rack mount are only compatible with square-hole server racks.

All-in-One Recording Functions: Continuous/manual/scheduled recording
Alarm recording (by multiple events), alarm recording schedule
Pre-alarm and post-alarm recording
Audio recording
Auto snapshots
Different recording schedules for the IP cameras

Megapixel Recordings: Supports megapixel recordings (up to 10 Mp) from various IP cameras

Multi-stream Support: Administrators now can flexibly define multiple video streams on specific camera models according to bandwidth resources and number of live-view channels. The adjustable video stream setting helps improve the displaying quality of live-view and well manage the bandwidth resources based on different usage requirements.

Smart Recording: The VioStor NVR automatically selects video streams from IP cameras for different recording scenarios. In normal situation, video recording maintains at lower quality resolution. While the alarm event happens, video recording switches to high quality resolution to capture more details. In other words, smart recording effectively avoids the constant storage consumption at all time, but achieves greater storage efficiency and boost recording quality when alarm events happen.

Real-time Digital Watermarking: Supports real-time digital watermarking to protect the videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.

Diversified Modes for Local Monitoring: 1, 4, 6, 8, 9, 10, 12, or 16-channel display modes
Sequential display mode

High Resolution Local Display: The VioStor NVR provides an HDMI port which can be connected to an HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution.

Convenient Control of PTZ and Speed Dome Cameras: The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR.

Digital Zoom: Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR.

On-screen Event Alert: When an event occurs, an alert icon will be shown instantly on the local monitoring page. The alert details can be viewed by clicking the alert icon.

Video Search: The VioStor NVR supports convenient video search by date and time on the local playback interface.

Local Video Playbacks on HDMI Monitors or TVs: The VioStor NVR supports direct video playbacks on HDMI monitors or TVs.

Quick System Setup: The VioStor NVR can be set up in simple steps on the local display interface.

Cross-platform Support: Use QNAP Surveillance Client for Windows and Mac to watch the live view and play back the recording files on the VioStor NVR.

Cross-browser Compatibility: On the Windows PC, you can also use Google Chrome, Microsoft Internet Explorer, or Mozilla Firefox to enjoy our surveillance features.

Multi-server Monitoring: Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over the LAN or WAN via an IE browser. ¹

Diversified Remote Monitoring Modes: 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, 42, 64-channel, and sequential display modes
Dual-display mode

Smart Control of PTZ & Speed Dome Cameras: The PTZ (Pan/Tilt/Zoom) cameras can be directly adjusted by the web user interface of the VioStor NVR

Preset Position Control and Auto Cruising: The preset positions of an IP camera can be viewed by clicking the corresponding number buttons on the monitoring page. The time interval can also be configured on the PTZ cameras to perform periodic monitoring.

Instant Event Notification: When the alarm recording is enabled and an event occurs, an alarm icon will be shown instantly on the monitoring page. The alert details can be viewed by clicking the icon.

Digital Zoom: Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces.

Dynamic E-map: The VioStor NVR provides the E-map function for users to upload the digital maps and indicate the locations of the IP cameras of a monitoring location or region.

Multi-view Playback: Use the multi-view playback feature to divide a video equally into multiple sessions for doing playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously.

Video Search by Date and Time, Timeline, Event, Intelligent Video Analytics (IVA): The VioStor NVR supports quick video search by date and time, timeline, event, and intelligent video analytics (IVA), which includes motion detection, foreign object, missing object, out of focus, and camera occlusion.

Advanced Event Management: VioStor NVR supports various event handling options for different kinds of events.
Events: Motion detection, alarm input, connection failure, recording failure, and user-defined event.
Actions: Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action.

Real-time SMS and Email Alert: Configure the SMTP server and SMSC server settings on the NVR in order to receive instant system warnings or error messages by email and/or SMS

Storage Expansion: VioStor NVR provides surveillance storage expansion solution which enables users to leverage the Turbo NAS storage capacity. By installing the StorageExpansion QPKG in the Turbo NAS, administrators can connect the VioStor NVR with the Turbo NAS to flexibly enlarge the total surveillance storage.

Scheduled Remote Replication: The VioStor NVR supports scheduled remote replication for performing secure data backup to a remote QNAP NAS on the local network.

Excellent Hardware Design: Powered by the Intel CPU and DDR3 memory, the VioStor NVR delivers superior performance for surveillance applications.

Linux Embedded System: The Linux-based VioStor NVR is more power-saving and less vulnerable to virus attacks compared to the PC-based surveillance solution.

Touch-N-Go PC-less Installation: Complete the first-time system installation, including hard disk initialization and RAID configuration, of the NVR by the LCD panel without using any PC.

Huge Storage Capacity for Long-term Recordings: The VioStor NVR supports up to 32TB of physical storage capacity (4TB hard drive x 8) for recording a large amount of video data over a long period of time.
Use the VMobile network surveillance application on Android phone, Android Tablet, iPhone, iPad, or iPod touch to easily access video management functions Multi-view Playback
Use the multi-view playback featuresuch as remote live view and playback recordings. In addition, the account on the VioStor NVR can be used to connect to an unlimited number of NVRs and IP cameras by VMobile through Wi-Fi, 3G, or 4G networks.

Fisheye Dewarping Camera function: The fisheye dewarping function, available on the web and local display interface for specific fisheye cameras and specific cameras with panomorph lens, assists in doing practical surveillance management, allowing the administrators to view the monitoring area in a clearer shape.

Authority Management: Create multiple users on the VioStor NVR and assign them to different user groups (administrator, system manager, or user) with different rights for doing monitoring, playback, PTZ control, and audio monitoring.

Auto Logoff: The VioStor NVR supports automatic user logoff from idling configuration pages. The administrator can set the timeout period to log off the users when the idling time has been reached.

Host Access Control: Specify the host or IP connections to be allowed or denied to access the NVR.

Online User List: View the record of users currently logged on and previously logged on to the NVR.

Detailed Event Logs: The VioStor NVR provides detailed event logs of system warnings, hard disk errors, network disconnections, UPS status, and access to the networking services of the NVR and video recordings

Advanced RAID with Hot-swap Design: The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, single, 6+hot spare and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume (RAID 1 or above) to be replaced by hot swapping without turning off the server.

Online RAID Capacity Expansion and Online RAID Level Migration: Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.
Online RAID Level Migration
Upgrade the disk configuration to a higher RAID level with the data retained without turning off the server.

S.M.A.R.T. & Advanced HDD Health Scanning (HHS): S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) helps monitor the hard disk drives status. The VioStor NVR supports HHS (HDD Health Scan) for doing disk checking and bad blocks scanning.

Automatic System Startup after Power Recovery: The VioStor NVR supports automatic system startup after a power recovery.

UPS Support for 24/7 Service: The VioStor NVR supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outages.

VS-8124U-RP Pro+ Specifications
Processor	Dual Core Intel Core™ i3 3.3GHz Processor
DRAM	4GB DDR3 RAM
HDD Capacity	8 x 3.5” SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
Hard Drive Tray	8 x hot-swappable and lockable tray
LAN Port	4 x Gigabit RJ-45 Ethernet port
LED Indicators	10 GbE(reserved), Status, LAN, eSATA(reserved), hard drives
USB	2 x USB 3.0 port (rear) 4 x USB 2.0 port (rear) Support USB pen drive, USB hub, and USB UPS etc.
Buttons	Power button, reset button
LCD Panel	Mono-LCD display with backlight Enter button, Select button for configuration
Alarm Buzzer	System warning
Form Factor	2U, Rack mountable
Dimensions	88(H) x 439(W) x 520(D) mm 3.46(H) x 17.28(W) x 20.47(D) inch
Weight	Net weight: 12.52 kg (27.61 lb) Gross weight: 23.42 kg (51.63 lb)
Temperature	0~40˚C / 32~104˚F
Relative Humidity	5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply	Input: 100-240V AC, 47-63Hz Output: 300W
Power Consumption (W)	130W Write/Read (with 8 x 1TB HDD installed)
Expansion Slot	2 (reserved for network and storage expansion)
Video Output	1 x HDMI 1 x VGA
Fan	3 x 6cm smart cooling fan
Certification	CE, FCC, VCCI, BSMI, C-Tick
Package Contents	VS-8124U-RP Pro+ CD-ROM Ethernet cable x 4 Power cord x 2 Flat head screw x 32 (for 3.5" HDD) Flat head screw x 32 (for 2.5" HDD) Quick Installation Guide 2U Rail Kit: SP-X79U-RAIL-KIT
