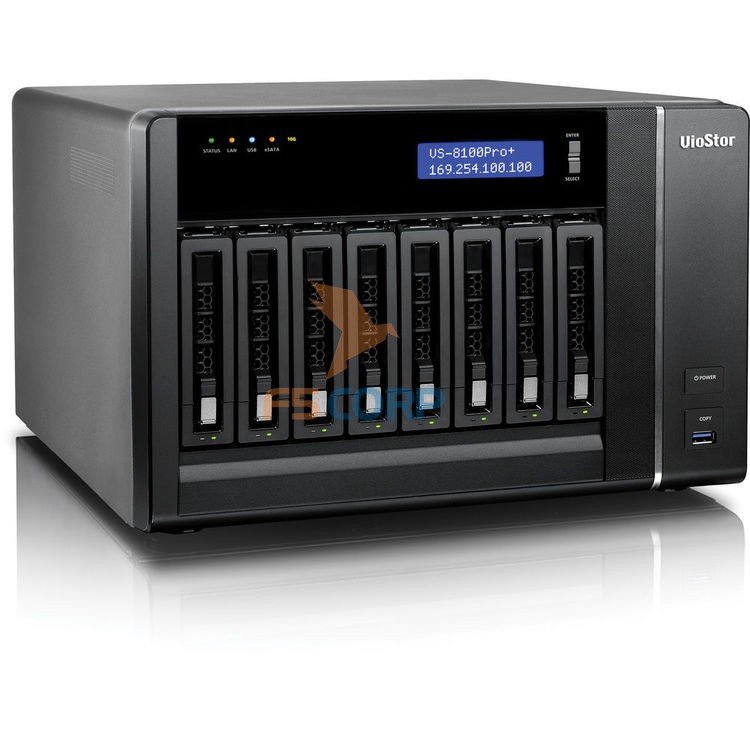

Thiết bị lưu trữ Qnap VS-8124Pro+

Giá bán: 109,294,000₫

Processor : Intel Core™ i3-2120 processor
HDD Capacity : 8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
Hard Drive Tray : 8 x hot-swappable and lockable tray
LAN Port : 2 x Gigabit RJ-45 Ethernet port
LED Indicators : Status, LAN, USB, hard drive LEDs

Hãng sản xuất : Qnap
Xuất xứ : Chính hãng
Bảo hành : 12 tháng
Trạng thái : Còn hàng
VAT : Đã bao gồm VAT

Mua ngay Giao tận nơi

F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín

Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội

Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng

HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM

The Qnap VS-8124 Pro+ VioStor NVR is a 24-channel network video recorder for IP cameras. It supports high quality real-time video and audio monitoring, up to 10-megapixel recording, and playback of multiple IP cameras.

It features 8 hot-swappable and lockable trays, each for a separately-sold 3TB RAID drive. In total, the 8124 supports up to 24TB of physical storage and is capable of H.264, MxPEG, MPEG-4, and M-JPEG recording from up to 24 IP cameras. A Linux-based standalone NVR, the 8124 sets up in 6 easy steps by Internet Explorer without extra software or even a PC required but rather via an HDMI or VGA connection to a local display.

The recorder is compatible with more than 1,000 IP cameras and video servers from popular brands including AXIS, ACTi, A-MTK, Arecont Vision, AVTECH, Brickcom, Canon, Cisco, CNB, DIGITUS, D-Link, EDIMAX, ELMO, EtroVision, GANZ, Hikvision, iPUX, IPX, IQeye, LevelOne, Linksys, Messoa, MOBOTIX, NAKAYO, Panasonic BB/BL/i-Pro, SANYO, SHANY, Sony, Samsung, TOA, TOSHIBA, TRENDnet, Videosec, VIOSECURE, VIVOTEK, Y-CAM, and Yokogawa.

Complete Recording Functions

Recording: High Quality H.264, MPEG-4, M-JPEG, and MxPEG recording

All-In-One Recording Functions: Continuous, manual, schedule recording
Alarm recording (by multiple events), and alarm recording schedule
Pre-alarm and post-alarm recording
Audio recording

Megapixel Recording: Supports up to 10-megapixel recording from various IP cameras

Generic IP Cameras Support: Provides an interface for users to enter the JPEG CGI command of their IP cameras so to retrieve video and audio data from IP cameras

Real-Time Digital Watermarking: Supports real-time digital watermarking to protect videos and snapshots from unauthorized modification. The Watermark Proof utility is provided to verify whether or not videos and snapshots are original

PC-Less Network Surveillance by HD HDMI or VGA Local Display

Diversified Modes for Local Monitoring: 1, 4, 6, 8, 9, 10, or 12-channel display mode
Sequential display mode

High Resolution Local Display: Provides an HDMI interface which can be connected to an HDMI monitor or TV for monitoring in full HD 1920 x 1080 resolution

Convenient Control of PTZ and Speed Dome Cameras: PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR

Digital Zoom: Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR

On-Screen Event Alert: When an event occurs, an alert icon will be shown instantly on a local monitoring page. The alert details can be viewed by clicking the alert icon

Video Search: Provides convenient video search by date and time on the local playback interface

Local Video Playback on HDMI Monitor or TV: Supports video playback directly on an HDMI monitor or TV

Quick System Setup: The VioStor NVR can be set up in simple steps on a local display interface

Network Surveillance by Web-Based Interface (Internet Explorer)

Multi-Server Monitoring: Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over LAN or WAN by an IE browser

Diversified Remote Monitoring Modes: 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, or 42-channel and sequential display mode
Exclusive picture-in-picture mode
Multi-display mode

Smart Control of PTZ & Speed Dome Cameras: PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly by the web user interface of the VioStor NVR

Preset Position Control and Auto Cruising: The preset positions of an IP camera can be viewed by clicking the corresponding number buttons on the monitoring page. The time interval can also be configured on the PTZ cameras for periodic monitoring

Instant Event Notification: When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on the monitoring page. The alert details can be viewed by clicking the icon

Digital Zoom: Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces

Dynamic E-Map: The VioStor NVR provides an E-map function for users to upload digital maps and indicate the locations of the IP cameras of a monitoring location or region

Remote Video Playback

Multi-View Playback: Use the multi-view playback feature to divide a video equally into multiple sessions for playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously

Video Search by Date and Time, Timeline, Event, Intelligent Video Analytics (IVA): The VioStor NVR supports quick video search by date and time, timeline, event, and intelligent video analytics (IVA), which includes motion detection, foreign object, missing object, out of focus, and camera occlusion

Event Management

Advanced Event Management: The VioStor NVR supports various event handling options for different kinds of events
Events: Motion detection, alarm input, connection failure, recording failure, and user-defined event
Actions: Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action

Real-Time SMS and Email Alert: Configure the SMTP server and SMSC server settings on the NVR in order to receive instant system warning or error messages by email and/or SMS

Convenient Backup Solution

Scheduled Remote Replication: The VioStor NVR supports scheduled remote replication for secure data backup to a remote QNAP NAS on a local network

One Touch Auto Video Backup: Configure the one touch auto video backup button on the front of the NVR to copy the data from the NVR to an external storage device when the button is pressed

Security Control

Authority Management: Create multiple users on the VioStor NVR and assign them to different user groups (administrator, system manager, or user) with different rights of monitoring, playback, PTZ control, and audio monitoring

Auto Logoff: The VioStor NVR supports automatic user logoff from idling configuration pages. The administrator can set the timeout period to log users off when at the end of idling time

Host Access Control: Specify the host or IP connections to be allowed and denied access to the NVR

On-Line User List: View the record of users currently logged on and previously logged on

Detailed Event Logs: The VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and access to the networking services of the NVR and video recordings

High Reliability and Smart Features

Advanced RAID with Hot-Swap Design: The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, 6+hot spare, single, and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume, RAID 1 or above, to be replaced by hot swapping without turning off the server

Online RAID Capacity Expansion: The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process

Online RAID Level Migration: Upgrade the disk configuration to higher RAID level with the data retained without turning off the server

S.M.A.R.T. & Advanced HDD Health Scanning (HHS): S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) helps monitor the hard disk drives' status. The VioStor NVR supports HHS (HDD Health Scan) for disk checking and bad blocks scanning

Automatic System Startup After Power Recovery: The VioStor NVR supports automatic system startup after a power recovery

UPS Support for 24/7 Service: The VioStor NVR supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outage

DOM Architecture with Embedded Fail-Safe Dual OS for Enhanced Reliability: All the OS and applications of the VioStor NVR are embedded on the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors which prevents unsuccessful system startups caused by bad blocks or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one for system startup takes over and the failed OS is recoverable from the other healthy OS

Network Services

Dual Gigabit LAN Ports: Failover: allows the VioStor NVR to sustain the failure of one network port to provide continuous services
Load Balancing: provides bandwidth aggregation to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured)
Multi-IP Settings: Two IP settings can be configured on the NVR to allow network access from two different subnets

Built-In DDNS Service: The VioStor NVR supports dynamic DNS (DDNS) for convenient access to the system via a domain name instead of a lengthy IP address

Built-In NTP Server: Allows the connected IP cameras to synchronize their date and time settings with the NVR

Convenient Data Access: The video data on the VioStor NVR can be accessed by the following protocols with proper access rights:
SMB/CIFS (Windows)
HTTP (Web file management)
FTP

Easy Configuration and Management

Web-Based User Interface: All system configurations, monitoring, and playback features of the NVR can be managed by the web-based interface

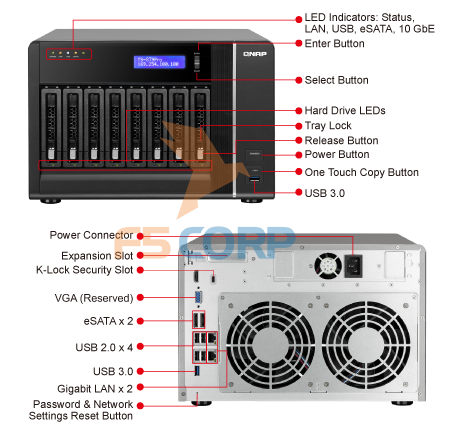

VS-8124 Pro+ Specifications
Processor	Intel Core™ i3-2120 processor
HDD Capacity	8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive Note: The system is shipped without HDD.
Hard Drive Tray	8 x hot-swappable and lockable tray
LAN Port	2 x Gigabit RJ-45 Ethernet port
LED Indicators	Status, LAN, USB, hard drive LEDs
USB	2 x USB 3.0 (front:1; back:1) 4 x USB 2.0 (rear:4) Front: for USB storage device (One touch auto video backup) Rear: for UPS device
Buttons	Power button, one touch auto video backup button, reset button
LCD Panel	Mono-LCD display with backlight Enter button, Select button for configuration
Alarm Buzzer	System warning
Form Factor	Tower
Dimensions	217.5(H) x 327(W) x 321.2(D) mm 8.56(H) x 12.8(W) x 12.65(D) inch
Weight	Net weight: 8.39 kg (18.48 lb) Gross weight: 13.98 kg (30.79 lb)
Temperature	0~40˚C / 32~104˚F
Relative Humidity	0~90% R.H.
Power Supply	Input: 100-240V AC, 50/60Hz, Output: 350W
Power Consumption (W)	101W Write/Read (with 8 x 1TB HDD installed)
Secure Design	K-Lock security slot for theft prevention
Video Output	1x HDMI 1x VGA
Fan	2 x 12cm smart cooling fan
Certification	CE, FCC, VCCI, BSMI, C-Tick
Package Contents	VS-8124 Pro+ CD-ROM Ethernet cable x 2 Power cord Flat head screw x 32 (for 3.5" HDD) Flat head screw x 32 (for 2.5" HDD) Quick Installation Guide
