Thiết bị lưu trữ QNAP VS-2104L VioStor 4-Channel, 2-Bay NVR

Giá bán: 13,467,020₫

Number of Supported Cameras : 4 (maximum of 8)
Network Interface : 1 x Ethernet 10/100/1000 port
Protocols Supported : HTTP, HTTPS, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP

Hãng sản xuất : Qnap
Xuất xứ : Chính hãng
Bảo hành : 12 tháng
Trạng thái : Còn hàng
VAT : Đã bao gồm VAT

Mua ngay Giao tận nơi

F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín

Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội

Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng

HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM

VS-2104L VioStor 4-Channel, 2-Bay NVR from Qnap is equipped to support up to four IP cameras, and to provide you with up to 8TB of storage on two 3.5" internal SATA drives. The VioStor does not ship with drives, so you can tailor your capacity to your needs. Setting up the NVR is simple using an IP switch. Connect up to four IP cameras to the switch, plug the switch into your router and the NVR, and you're ready to start recording. This is a full pentaplex operational system that allows you to simultaneously live-view, playback, backup, remotely access, and perform administrative tasks without having to stop recording.

It comes with an four surveillance software license to be installed after you've installed your drives, this supports up to eight cameras. An optional four camera license enables you to upgrade your unit to support up to eight cameras. The software features multiple recording modes including continuous, scheduled, motion-detection, and alarm modes. Recording modes can be set per-channel to further tailor the system to your needs. The VioStor also supports Smart recording to help optimize your memory. This system records at a medium or low resolution, quality, and frame and bit rates, until an alarm or event happens, then it will automatically switch to high-resolution and quality to capture detailed footage when it's most critical. Edge recording takes advantage of IP cameras with local memory storage. If the connection is lost to the camera, the NVR will scan the camera's local memory when the connection is restored, and download the missing footage.

Multiple users with individual passwords can be granted access ranging from live-view only up to full administrative permission. Use preset profiles, or grant/restrict access to specific functions for each user. To aid in file searches of recorded video, the VioStor can use the Intelligent Video Analytics (IVA) system to automatically detect when something has changed in the camera's field of view. It can find motion-detection, when new objects appear, when objects are removed, or when the camera goes out of focus or is blocked. This enables quicker searches for specific types of events, instead of scanning through hours of files. You can also upload an E-Map, and map out where cameras are located and what type of cameras they are. When configured, simply click on the camera icon and the camera menu will pop-up to change and update settings including recording mode, and image quality.

Performance

Four channels
Two 3.5" SATA ports supporting up to 4TB drives each
Up to H.264 compression, depending on camera capability
Up to 30 fps recording and display per channel
Automatic camera detection for cameras connected to the local network
Per-channel multi-stream capability for recording and live-view in different resolutions
Full pentaplex operation: live-view, playback, backup, change/adjust settings, and remotely access the system without having to stop recording

Recording Modes

Supports real-time digital watermarking for all channels
Continuous: Captures everything, but fills hard drive fast
Schedule: Recording starts and stops at set times and days
Manual: Manually begin and end recording
Alarm recording by multiple events
Smart recording, depending on the camera capabilities
Manual recording, and changes to the recording schedule can be password protected
Pre/post recording intervals up to 5 minutes
Audio recording supported if the camera is equipped with or connected to a microphone
Smart recording: Records at low-quality for regular recording, but switches to high-quality when an alarm event happens for detailed video capture. Select Sony, Axis, and Vivotek camera models support this function
Edge recording: Available if the camera has a local memory option, like a memory card. If the connection to the NVR is lost, when the connection is restored, the NVR will search the memory card and capture the missing footage

Remote Access

The native software is compatible with Windows and Mac OS
Access NVR through most browsers including Google Chrome, Internet Explorer, and Firefox
Connect to NVR through remote app for Android, iOS, and Windows devices
Access to the NVR, including live-view, playback, controls, and settings are done exclusively via browsers or the mobile app
Two-way communication is supported if the camera selected is equipped with, or connected two, a microphone and speaker
Automatic SMS text and email alerts when selectable events or alarms occur
Still-image attachments can be sent with email alerts

User Access Security

Password protection to manually stop recording, system reboot or shutdown
Alerts if unauthorized users attempt an action
Selectable permissions per-channel or per-function
Administrator: Can access system administration, monitoring, and playback
System manager: Can create and delete other system manager and general user accounts, and assign monitoring, playback, and administration rights to them
User: Only has the permission to monitor and video playback. They have no administration authority

Intelligent Video Analytics (IVA)

Advanced functions of the software to actively notice changes in the camera's field of view
Use during playback to quickly find when something has happened
Motion detection: Detects movement of objects
Foreign object: Detects when new objects appear
Missing object: Detects when objects are no longer in the frame
Out of focus: Detects when the camera is out of focus
Camera obstruction: Detects if the camera view has become obstructed

S.M.A.R.T. Monitoring

S.M.A.R.T.: Self-Monitoring, Analysis and Reporting Technology
A system designed to detect potential hard drive failures before they occur
When a failure is anticipated, the user is notified and you may choose to backup and replace the drive before an unexpected outage happens and files are lost

Local and Remote Backup

One USB 2.0 and two USB 3.0 ports to connect external backup devices
Configure saving pathway for automatic backup
Save to remote location while remotely accessing NVR

E-Map

Upload a map of the building or property, and mark where the cameras are located
Users can use this map to select cameras, choose recording modes, and view event logs
See alarm and events displayed on the e-map

PTZ Control

Control PTZ cameras from your computer or smart phone
Virtual joystick displays on the screen when a PTZ camera is selected

Number of Supported Cameras	4 (maximum of 8)
Compatible Cameras	ONVIF compliant, and optimum compatibility with Sony, Axis, and Vivtek IP cameras
Pentaplex Operation	Full
Compression	up to H.264
Frame Rate	Up to 30 fps, per channel
Resolution	Recording: Dependent on camera capability Display: Dependent on Internet connection and available bandwidth
Storage	2 x 3.5" SATA ports support up to 4 TB drives per port Hard drives not included
Display Modes	1, 4, Sequential
Audio Support	None

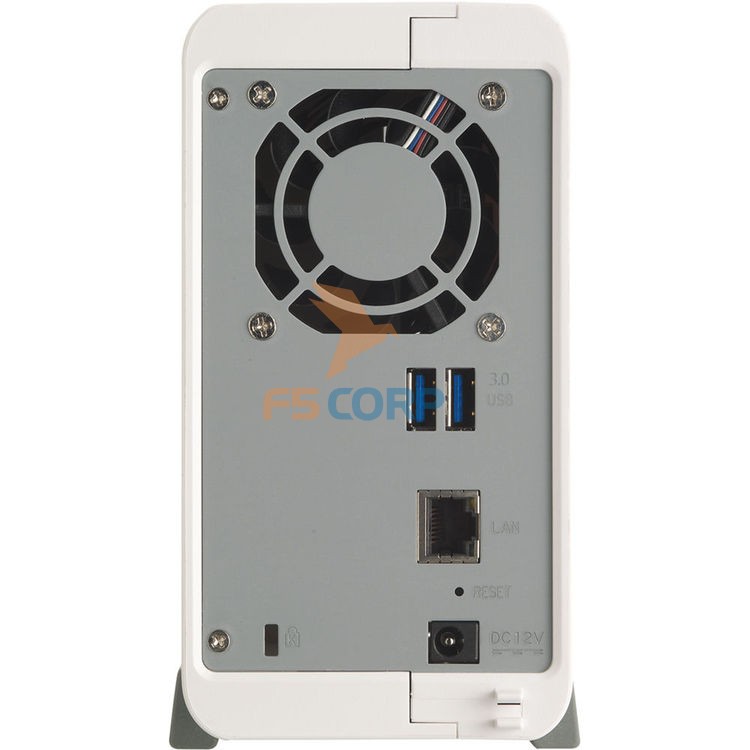

USB	1 x USB 2.0, front panel 2 x USB 3.0, rear panel
Network Interface	1 x Ethernet 10/100/1000 port
Protocols Supported	HTTP, HTTPS, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
System Requirements	Windows: Vista, 7, 8 or Mac OS X: 10.7.x, 10.8.x Dual core CPU, 2.4 GHz or above 2 GB or more, available memory
Power Requirements	100 - 240 VAC, 60 W, power adapter
Power Consumption	13 W, with 2 x 500GB HDD installed
Environmental	Temperature: 32 to 104°F (0 to 40°C) Humidity: 5 to 95%, non-condensing
Dimensions	8.6 x 6.5 x 3.4" (21.8 x 16.6 x 8.5 cm)
Weight	32.1 oz (910 g)
