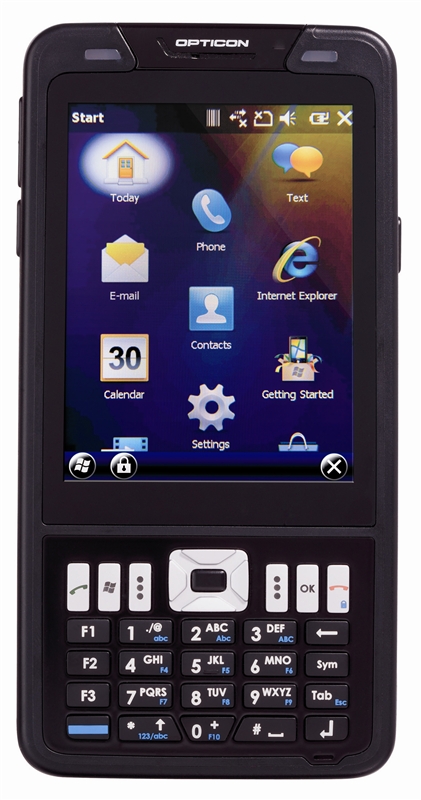

Máy quét mã vạch Opticon H-22 (1D)
Giá bán: 22,346,000₫
- Bộ Nhớ : RAM 256 MB
- Hệ điều hành : CPU: Marvell PXA320 806MHz O/S, Microsoft™ Windows Mobile™ 6.5.3
- Màn hình : 3.7
- Hãng sản xuất : Opticon
- Xuất xứ : Chính hãng
- Bảo hành : 12 tháng
- Trạng thái : Còn hàng
- VAT : Chưa bao gồm VAT
F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín
Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội
Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng
HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM
So sánh với các sản phẩm tương tự Xem thêm
Memory |
|
NAND Flash |
512 MB |
RAM |
256 MB |
Expansion |
User accessible microSD I/O + HC |
Operation |
|
CPU |
Marvell PXA320 806MHz |
O/S |
Microsoft™ Windows Mobile™ 6.5.3 |
Display |
|
Type |
Blanview TFT LCD, 262k color display with touch screen |
Size |
3.7 inch, 480 x 640 pixels |
Mode |
Portrait / Landscape |
Operating indicators |
|
Visual |
1 LEDs (red/orange/green) |
Non-visual |
Vibrate, Buzzer |
Operating keys |
|
Entry options |
QWERTY keyboard, navigation key (scroll + select), function keys, 10 enabled by color key, control keys, 1 power key, Windows Mobile key, OK 2 phone keys, reset key, volume key, 4 scan keys, reconfigurable |
Communication |
|
USB |
OTG, client and host |
IrDA |
Ver. 1.4, 2400 bps - 115.2 kbps (SIR ), 576 kbps - 1.152 Mbps (MIR) |
Bluetooth |
Ver. 2.1 + EDR, class 2 |
WiFi |
IEEE.802.11b/g/n |
Telecom |
GPRS/EDGE (quad-band 850/900/1800/1900), 3G UMTS (WCDMA band I,II,V,VI,VIII), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M) |
GPS |
Integrated AGPS |
Audio |
Speaker/microphone (mono), 3.5mm headset connector (stereo) |
Extension |
User accessible microSD I/O |
Power |
|
Rechargeable battery |
Lithium-Ion 3.7V 3060mAh |
Backup battery |
18mAh for main battery hotswap |
Charging method |
Enclosed power supply, separate car charging adapter, separate cradle |
Camera |
|
Color camera |
3.2 megapixels, auto-focus, LED flash |
Barcode scanner Optics |
|
Light source |
650 nm visible laser diode |
Scan rate |
100 scans/sec |
Image format |
Bitmap, JPEG |
Reading pitch angle |
-35 to 0°, 0 to +35° |
Reading skew angle |
-50 to -8°, +8 to +50° |
Reading tilt angle |
-20 to 0°, 0 to +20° |
Curvature |
R>15 mm (EAN8), R>20 mm (EAN13) |
Min. resolution at PCS 0.9 |
0.127 mm / 5 mil |
Min. PCS value |
0.45 |
Depth of field |
55 - 645 mm / 2.17 - 25.39 in, at PCS 0.9 Code 39 |
Supported Symbologies |
|
Barcode (1D) |
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
Postal code |
Chinese Post, Korean Postal Authority code |
2D code |
Aztec Code, Aztec Runes, Codablock F, Composite Codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), Micro QR Code, MicroPDF417, PDF417, QR code |
Durability |
|
Temperature in operation |
-10 to 50 °C / 14 to 122 °F |
Temperature in storage |
-30 to 80 °C / -22 to 176 °F (main battery storage: -20 to 60 °C / -4 to 140) |
Humidity in operation |
up to 95% (non-condensing) |
Humidity in storage |
up to 95% (non-condensing) |
Drop test |
1.5 m / 5 ft drop onto concrete surface |
Protection rate |
IP65 |
Regulatory & Safety |
|
Product compliance |
CE, FCC, PTCRB, GCF, RoHS, CTIA/IEEE1725, IEC 60825-1 Class 2 |
Case |
Black |
Physical |
|
Dimensions (w x h x d) |
151 x 75 x 25 mm |
Weight body |
Ca. 340 g / 12 oz (incl. battery) |
