Thiết bị lưu trữ Qnap VS4108Pro+

Giá bán: 50,078,140₫

Display Mode : 8-channel display, sequential display mode
PRODUCT HIGHLIGHTS : H.264/MPEG-4/M-JPEG/MxPEG Compression Maximum Network Throughput of 250 Mb/s Real-Time Remote Monitoring Intelligent Video Analytics

Hãng sản xuất : Qnap
Xuất xứ : Chính hãng
Bảo hành : 12 tháng
Trạng thái : Còn hàng
VAT : Đã bao gồm VAT

Mua ngay Giao tận nơi

F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín

Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội

Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng

HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM

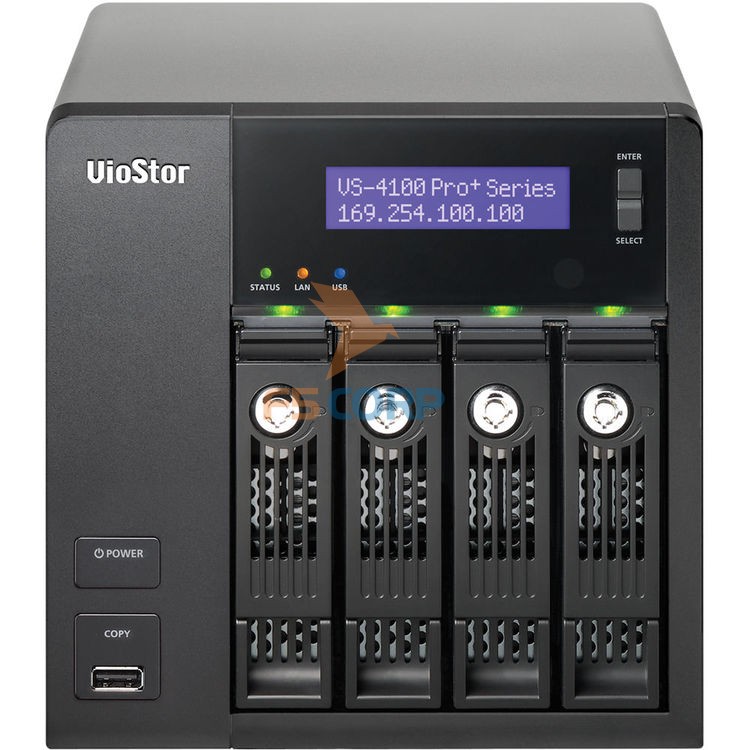

The Qnap VS-4108-PRO+-US VioStor 8-Channel 4-Bay Network Video Recorder is designed for small- and medium-sized enterprises and SOHO applications. With an Intel Dual-Core processor at its heart, this NVR delivers a throughput of 250 Mb/s, allowing for seamless video playback.

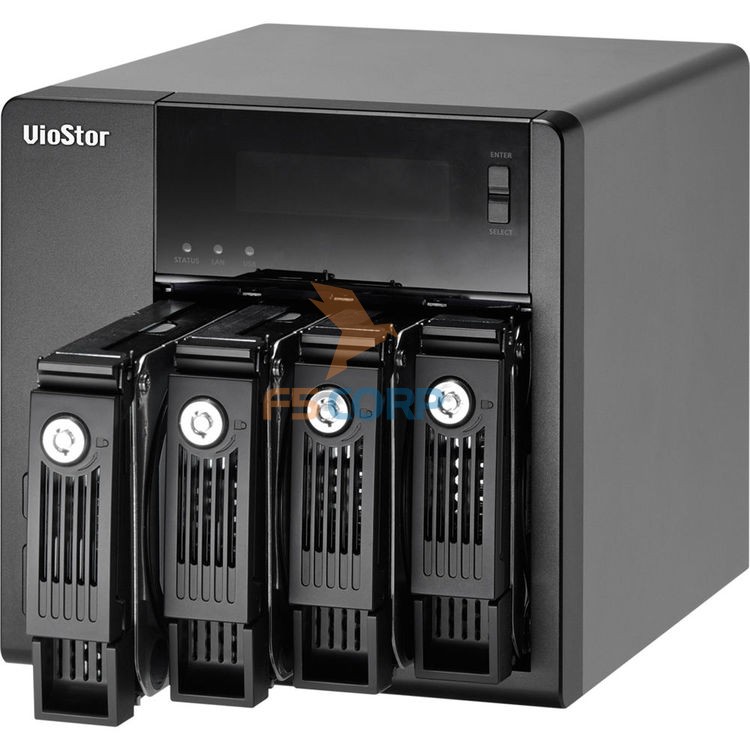

The NVR features 4 hot-swappable trays, each of which accommodates a single 4TB hard drive. It is capable of recording in H.264, MPEG-4, M-JPEG, and MxPEG formats from up to 8 IP cameras or video servers. The multi-server monitoring feature of this VioStor NVR allows you to simultaneously monitor up to 128 IP cameras from multiple NVR servers.

Equipped with IVA (Intelligent Video Analytics) feature, this 8-channel NVR provides you with security features such as motion detection, foreign object, missing object, out of focus, and camera occlusion. Additionally, it also offers schedule recording, alarm recording, alarm recording schedule, motion detection recording, and pre/post-alarm recording.

Moreover, this 8-channel NVR ensures data security with RAID (RAID 0, 1, 5, 5+hot spare, 6), online RAID capacity expansion, online RAID level migration, dual Giga LAN ports for network failover, load-balancing, multi-IP setting, etc. With Touch-N-Go PC-less installation, this VioStor 8-channel NVR is incredibly easy to set up. The entire setup, including disk initialization and RAID configuration, can be accomplished just by connecting the NVR to an LCD display via an HDMI connection

Note: The standard system is shipped without hard drives. Actual performance may vary depending on the network environment.

Surveillance

Supports high-quality H.264, MPEG-4, and M-JPEG recording formats.
Allows scheduled, continuous, or manual recording.
Events are triggered by motion detection.
Any sensor can be recorded with the alarm recording function; recording schedules can be set for different cameras.
Megapixel recording up to 10 Mp from multiple IP cameras or video servers.
Multi-server monitoring can be done for up to 128 channels from a remote PC over LAN or WAN.
Cross-platform support lets you view live content and playback recording files on your Windows or Mac based PC by using the QNAP Surveillance Client software.
Real-time digital watermarking protects your videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.
Supports different video modes like 8-channel and sequential display mode, and dual-display mode.
High-resolution local display can be achieved by using the HDMI port to connect the NVR to an HDMI monitor or TV for monitoring content in Full HD (1920 x 1080) resolution.
Convenient control of PTZ & speed dome cameras allows you to adjust the PTZ cameras as well as view preset positions of the IP cameras on the local display interface.
Digital zoom allows you to zoom in and out of the video image, allowing for flexible monitoring and playback.
On-screen event alerts icons are immediately displayed on the local monitoring page in case any event occurs.
Preset Position Control and Auto Cruising allow you to configure PTZ cameras to cruise according to the preset positions along the time interval for each preset position.
E-Map enables you to upload the images of the monitored locations for easy preview.
Fisheye Dewarping function assists in practical surveillance management, allowing you to view the monitoring area without the fisheye effect.
Mobile Surveillance by VMobile enables you to remotely view live content and playback recordings on your portable mobile devices over Wi-Fi, 3G, or 4G networks by using the VMobile network surveillance application.

Remote Video Playback

Using Multi-View Playback, you can divide a video into multiple sessions equally for playback in a multi-view window and play videos of multiple IP cameras in the multi-view window simultaneously.
Quick data search can be performed by date & time, timeline, event, and intelligent video analytics (IVA) such as motion detection, missing object, foreign object, out of focus, camera occlusion, etc.

Event Management

Allows you to mange several events like motion detection, alarm input, connection failure, recording failure, and other user-defined events.
Enables you to handle several actions like video recording, e-mail alert, SMS alert, buzzer, PTZ camera control, alarm output, and other user-defined actions.
Real-time SMS and e-mail alert are provided in case of system error or emergencies. SMS and alert e-mails are sent to the administrator immediately.

Backup Solution

The Scheduled Remote Replication feature enables you to copy the recording data of the local VioStor to a remote Qnap NAS (Network Attached Storage) on the local network.
Using the One-Touch Auto-video Backup solution, you can immediately copy the recording data to a compatible USB device.

Hardware Design

Powered by an Intel CPU and DDRIII memory card, the NVR delivers superior performance for surveillance applications.
The CPU thermal solution uses a fanless design to provide better performance, quiet operation, and enhanced reliability.
Linux-based NVR is less vulnerable to virus attacks.
Using the Touch-N-Go PC-less installation feature, you can complete the first-time system installation, including hard disk initialization and RAID configuration, of the NVR via the LCD panel without using any PC.
Supports up to 16TB of physical storage capacity (4 x 4TB hard drives) for recording a large amount of video data over a long period of time.

Security Control

The Authority Management feature lets you create different user groups, i.e., administrator, system manager, and user who can be assigned different rights for having access to monitoring, playback, PTZ control, and audio monitoring.
The Auto Log-Off feature allows you to set the timeout period to log off the users when the idling time is over.
With Host Access Control you can specify the host or IP connections that are to be allowed and denied to access the NVR.
An online user list allows you to view the record of users currently logged on and those that had previously logged on to the NVR.
Detailed event logs offer logs of system warning, hard disk error, network disconnection, UPS status, users' networking services, and recordings access record.

High Reliability and Smart Features

Advanced RAID with hot-swap design offers Single disk, RAID 0, RAID 1, RAID 5, RAID 5+hot spare, and JBOD disk configurations due to which a failed drive of a disk volume (RAID 1 or above) can be replaced through hot swapping without turning off the server.
Online RAID capacity expansion and online RAID level migration allows you to upgrade the disk configuration to a higher RAID level, retaining the existing data and without turning off the server.
Intelligent automatic system startup turns on the system automatically when power resumes after a power outage.
APC, CyberPower, MGE, and YEC UPS devices are supported to provide 24/7 service against unexpected power outages.
S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) is used to monitor hard disk status.
Advanced HHS (HDD Health Scanning) supports disk checking and bad blocks scanning.
DOM Architecture with Embedded Fail-Safe Dual OS for enhanced reliability ensures that 2 operating systems are installed on the DOM, so as to boot the system alternatively upon every startup. When one fails, the other one can be used for startup and the failed OS is recoverable from the other healthy OS.

Network Services

The built-in DDNS support allows you to create a unique registered domain name from a DDNS service provider for use with the NVR.
The built-in NTP server uses the NTP (Network Time Protocol) to synchronize the date and time of the network cameras with that of the NVR.
You can conveniently access the recording data on the NVR through the Network Neighborhood (SMB / CIFS), Web File Management (HTTP), or FTP server.

Easy Configuration and Management

With the intelligent software utility finder, you can quickly search IP cameras and configure system settings on the local network.
Using the web-based user interface, you can manage all the system configurations, monitoring, and playback features of the NVR.

Recording
Video Compression	H.264, MPEG-4, M-JPEG, MxPEG
Recording Mode	Continuous, manual, and scheduled recording Alarm recording, multiple alarm recording schedule Pre-alarm and post-alarm recording Auto snapshot (scheduled or hourly snapshot) Real-time digital watermarking
Recording Performance	Up to 30 fps at HD (720p) for each channel
Megapixel Recording	Supports megapixel cameras
File Format	AVI (QNAP codec is required for playback)
Local Display Specs
Display Mode	8-channel display, sequential display mode
Local Playback	Single-view playback
Search Mode for Local Playback	By date and time
Playback Control	Play, pause, stop, reverse play, play next/previous video file, and speed control
Features	Advanced Monitoring: Full screen display, event notification, PTZ control, and digital zoom Advanced Playback: Full screen display, digital zoom
Remote Monitoring Specs
Multi-server Monitoring	Up to 128 channels monitoring from multiple VioStor NVR servers
Display Mode	8-channel display, sequential mode, dual display mode
Features	Advanced Monitoring: Full screen display, video snapshot, manual recording, event notification, PTZ control, and digital zoom
E-Map	Upload digital maps and indicate the locations of the IP cameras of a monitoring location or region
Remote Playback
Search Modes	By date & time, timeline, event, and intelligent video analytics (IVA)
Intelligent Video Analytics	Motion detection, missing object, foreign object, out of focus, and camera occlusion
Playback Channel	Maximum 16-view playback from multiple NVR servers simultaneously
Playback Modes	Play, pause, stop, reverse play, next/previous frame, next/previous video file, and speed control
Features	Advanced Playback: Full screen display, video snapshot, digital zoom, and digital watermarking
Export	Multiple files export to an AVI file
Download	Video files and snapshots can be accessed by Web File Manager (HTTP), FTP, or SMB/CIFS
Security
Access Rights Management	Multiple accounts creation with different rights of monitoring, playback, PTZ control, and audio monitoring
Access Control	Control of allowed and denied access to the NVR
UPS	APC, CyberPower, MGE, YEC (USB)
Languages	Czech, Danish, Dutch, English, French, Finnish, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Traditional Chinese, Turkish
Miscellaneous	Auto Logoff: Automatic user logoff from idling configuration pages Online Users List: Logon status display of active users and logon history Event Logs: Detailed event logs
PC Requirements
Operating System	Microsoft Windows 8, 7, Vista
Web Browser	Google Chrome 23.0.1271.64m, Microsoft Internet Explorer 8/9/10 (desktop mode, 32-bit), Mozilla Firefox 17.0.1
Network Interface	10/100/1000 Mb/s
Display Resolution	Suggested 1280 x 720 pixels or above
Hardware Specification
Operating System	Linux-embedded
Supported IP Cameras	Maximum 8; supports video servers as well
Multi-server Monitoring	Up to 128 channels
Video Compression	IP Camera: H.264, MPEG-4, M-JPEG & MxPEG (depending on the camera models
Network Throughput	Maximum 250 Mb/s
Megapixel Recording	Up to 10 Mp
Playback	Playback: 16-view
Intelligent Video Analytics	Motion detection, missing object, foreign object, out of focus, and camera occlusion
Supported Hard Drives	Maximum 4 x 3.5" SATA, 2.5" SATA, SSD
Storage Capacity	Maximum: 16 TB (4 x 4 TB hard drives)
RAID	RAID 0, 1, 5, 5+hot spare, 6
Processor	Dual-Core Intel CPU
LAN Ports	2
USB Ports	2 x USB 3.0 5 x USB 2.0
Power Consumption	64.2 W
Dimensions (H x W x D)	6.97 x 7.09 x 9.25" (177.00 x 180.00 x 235.00 mm)
Gross Weight	12.30 lb (5.58 kg)
