Datavideo MONITOR TLM-170PM

Datavideo MONITOR TLM-170PM

17.3” FULL HD 1080p LCD Panel with Underscan and Overscan menu options

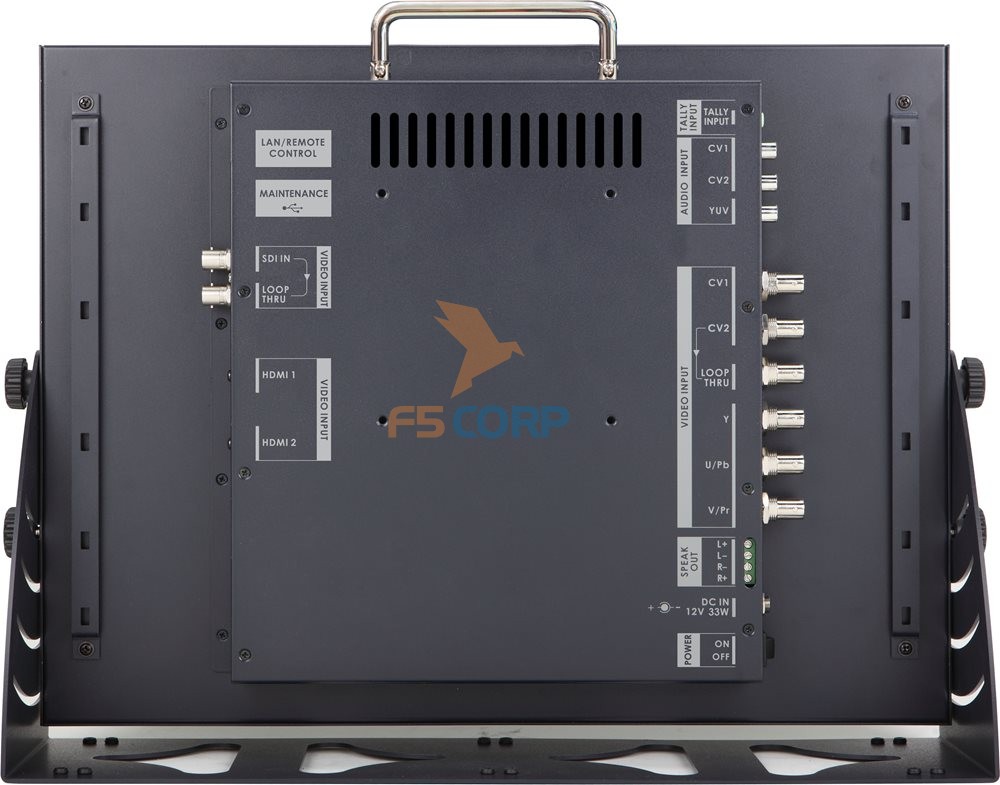

Digital Video Inputs: SD/HD-SDI with loop thru and 2x HDMI

Digital Audio Inputs: via SDI or HDMI inputs.

Analogue Video Inputs: Component [ Y,Pb,Pr ], Composite x2 with loop thru

Mono Audio Inputs: Single RCA phono socket for analogue inputs.

Head phone 3.5mm stereo jack socket for discrete audio monitoring.

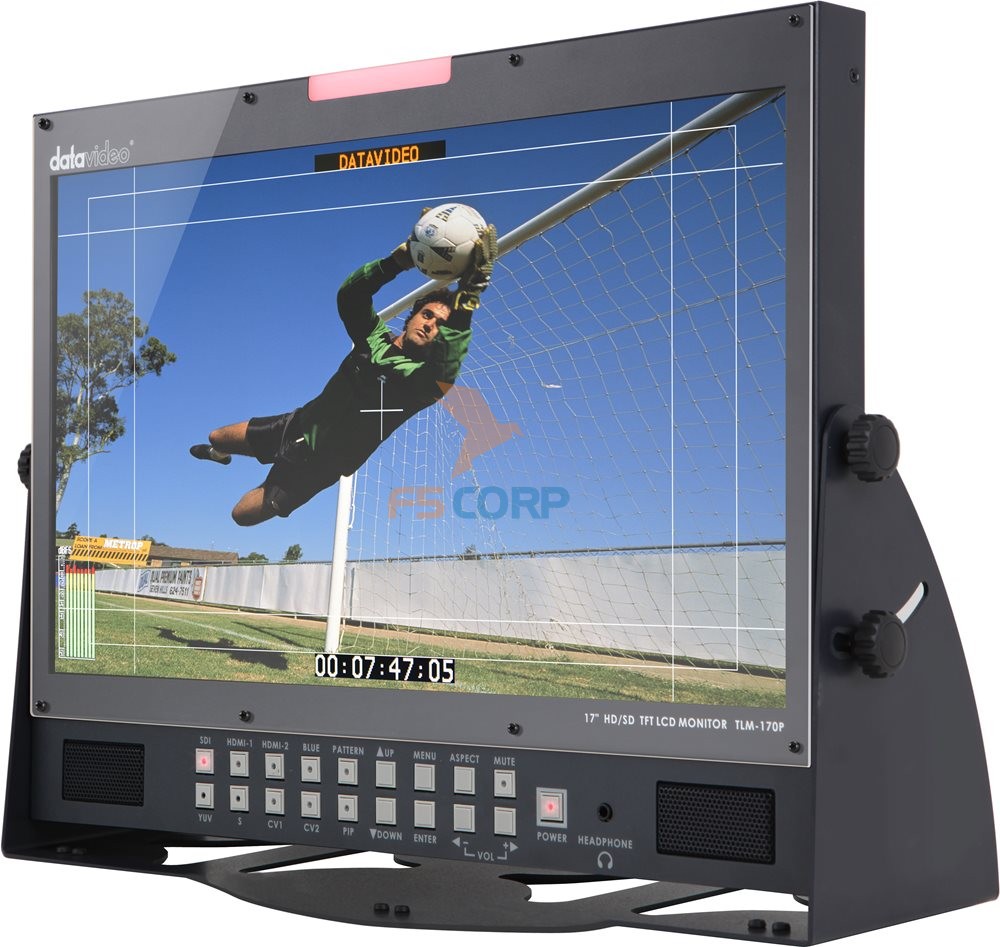

Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect Ratio, Blue only, Pattern ( Colour Bars ), Menu and audio controls.

Colour temperature menu option has 3 modes (6500K, 9300K and user defined)

OSD audio level peak meter for SDI and HDMI based digital audio inputs.

On screen overlays for frame marker 80%, 90%, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.

Bi-colour Tally light [Red or  Amber] and 3.5mm Jack Tally input socket.

Analogue Audio external speaker outputs L-, L+ and R-, R+ [Max 5v p - p (2w)].

RJ-45 TCP/IP connection allows remote set up of the monitor using a PC / Mac based browser.

USB 2.0 port for easy update of firmware with a USB 2.0 pen drive.
