Card Kỹ Xảo Blackmagic Design DeckLink Quad
Giá bán: 27,128,000₫
- Computer Interface : PCI Express 8 lane, compatible with 8 and 16 lane PCIe slots.
- Physical Installation : PCI Express 8 lane, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows 8, Windows 10 and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system
- Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software.
- Hãng sản xuất : Blackmagic
- Xuất xứ : Úc
- Bảo hành : 12 tháng
- Trạng thái : Còn hàng
- VAT : Đã bao gồm VAT
F5 CORP - Cung cấp Dịch vụ Bán hàng toàn quốc uy tín
Hà Nội: 560 Trường Chinh, Đống Đa, Hà Nội
Đà Nẵng: 36 Kiều Oánh Mậu, Hoà Minh, Liên Chiểu, Đà Nẵng
HCM: 248 Hoàng Hoa Thám, P.12, Q.Tân Bình, TP.HCM
So sánh với các sản phẩm tương tự Xem thêm
Card Kỹ Xảo - Thiết Bị Ghi Hình Blackmagic Design DeckLink Quad
Description

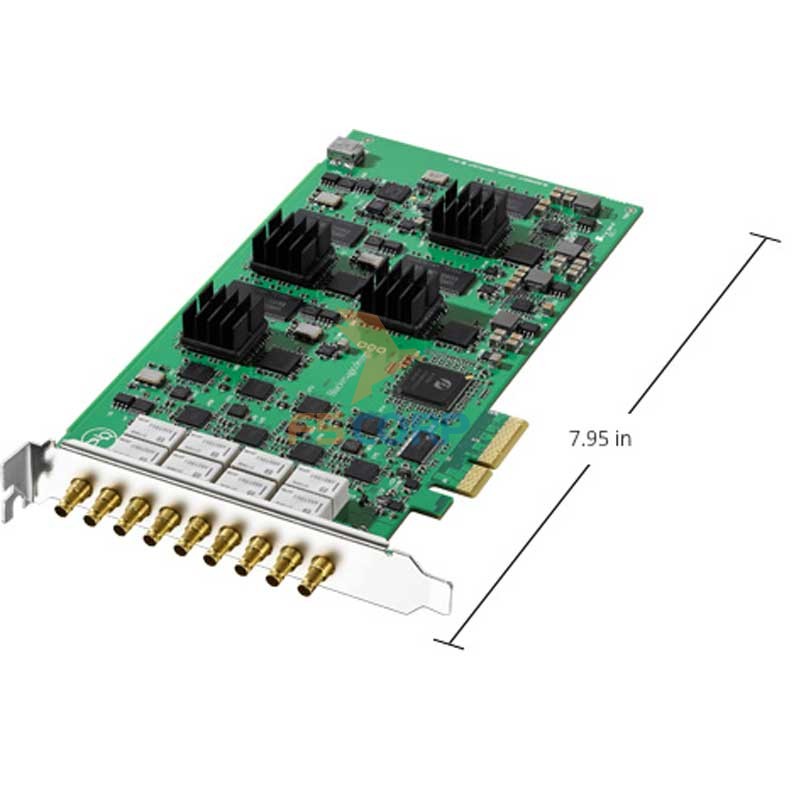

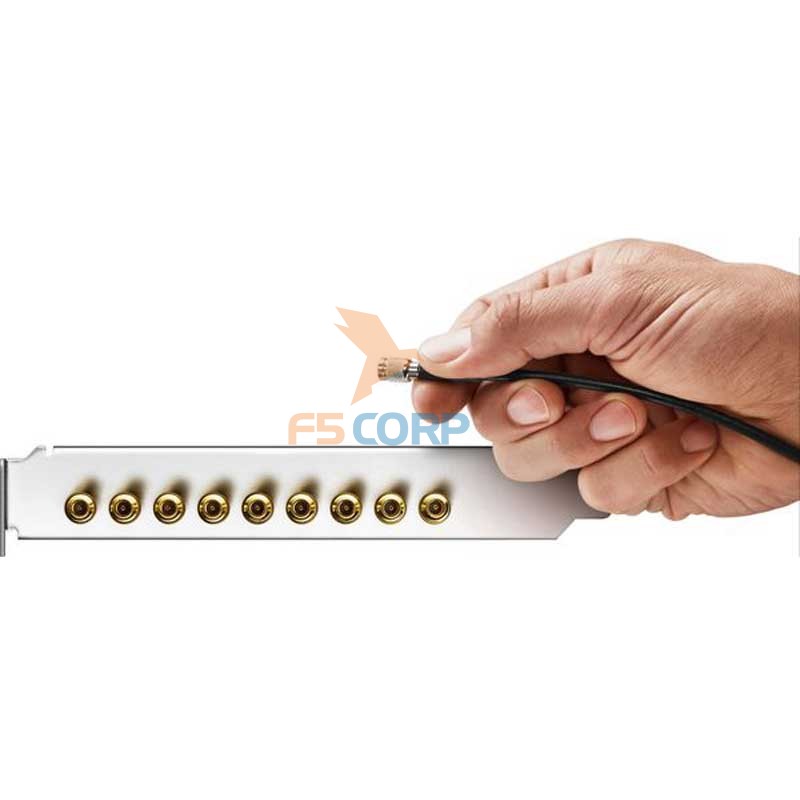

DeckLink Quad features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
| Connections |
SDI Video Input 8 x bidirectional 12-bit SD/HD independantly configurable as either Input or Output SDI Video Output 8 x bidirectional 12-bit SD/HD independantly configurable as either Output or Input SDI Audio Input 16 channels embedded in SD and HD SDI Audio Output 16 channels embedded in SD and HD Sync Input Blackburst in SD 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format. Computer Interface PCI Express 8 lane, compatible with 8 and 16 lane PCIe slots. Codecs Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4 |
| Software |
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Windows 8 and Windows 10. Blackmagic Desktop Video Utility and Blackmagic driver on Linux Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 8 lane, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows 8, Windows 10 and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. Software Applications DaVinci Resolve Fusion Final Cut Pro X Premiere Pro CC Avid Media Composer After Effects CC Avid Pro Tools Steinberg Cubase Steinberg Nuendo Photoshop CC Other supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster. |
| Video Standards |
SD Format Support 525/29.97 NTSC, 625/25 PAL HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Video Sampling 4:2:2, 4:4:4 Color Precision 8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 Color Space REC 601, REC 709 Processing Colorspace Conversion Hardware based real time HD Down Conversion Built in, high quality hardware down converter outputs HD to SD down converted signal on configured secondary output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles HD Up Conversion Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom Cross Conversion Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback Real Time Effects Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Operating Systems Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows 8 64-bit or Windows 10 64-bit. Linux Environmental Specifications Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing What's Included DeckLink Quad 2 Software SD Card Warranty 1 Year Limited Manufacturer's Warranty |
