Card Kỹ Xảo BlackMagic Design DeckLink Duo

BlackMagic Design DeckLink Duo

Giới thiệu về Blackmagic Design DeckLink Duo

DeckLink Duo là lý tưởng cho những người cần hai tính năng capture và xem lại  hoàn toàn độc lập cả trong và ngoài của máy tính. Có hai đầu vào SDI, và hai kết quả đầu ra SDI cộng với một cổng tham chiếu tri-sync/black_burst.

DESCRIPTION

Connect to Anything
DeckLink Studio includes highest quality 10 bit SDI video combined with enhanced analog connections to support a massive range of video equipment. DeckLink Studio includes fully independent connections for SDI, HDMI, analog component, S-Video and composite video. Both the SDI and analog component connections auto switch between SD and HD, plus there's an extra SD SDI output via a built in hardware down converter for when you're working in HD. When you're working in NTSC and PAL, you can use the SD-SDI output as a key output! Also included are a massive number of audio connections, with 4 channels of balanced analog audio, 8 channels of SDI audio plus 2 channels of AES/EBU digital with sample rate converters. For a broadcast strength solution, DeckLink Studio also has RS-422 deck control and blackburst and tri-sync reference input.

DeckLink Duo features two independent SDI capture and playback engines built into the single card with a 4 lane PCI Express connection. DeckLink SDI is the world's most affordable HD/SD-SDI capture card, with 10 bit SDI capture and playback, plus RS-422 deck control and reference input.

DeckLink cards let you capture and playback to the widest range of equipment, such as HDCAM, HD-D5, HDCAM SR 4:2:2, Betacam SP, Digital Betacam, HD receivers, HDV cameras, televisions, VHS recorders, analog broadcast monitors, mixers and many more!

Hardware Down Converter
If you've ever wanted to monitor in both HD and SD while you work, then you'll love the built in high quality down converter on the DeckLink Studio model that's always active on the SD-SDI, S-Video and composite video output connections. This lets you use the main SD/HD-SDI output for HD, while simultaneously using the SD-SDI, S-Video and composite outputs for standard definition. When working in HD the built in down converter lets all video outputs remain active in both capture and playback mode, and in all HD video formats! You can instantly select between letterbox, anamorphic 16:9 and center cut 4:3 down conversion styles.

Two Capture Cards in One!

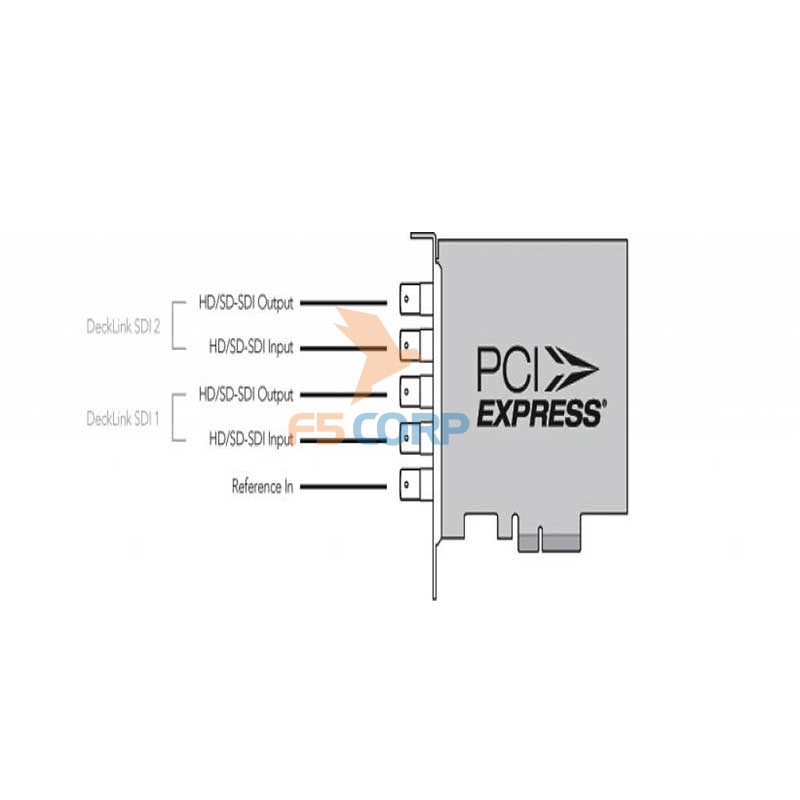

The new DeckLink Duo is like having two DeckLink cards in one! DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, as both capture and playback channels are completely independent. There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams or simultaneous capture and playback per system.

Incredible Analog Connections
DeckLink Studio includes enhanced analog connections to make it easy to connect to a wider range of analog broadcast equipment. You can simultaneously connect to analog component, S-Video and composite equipment, because DeckLink Studio has independent connections for each. All outputs are always active and will output via the built in down converter when you're working in HD. DeckLink Studio is the perfect capture card for working with decks such as Betacam SP, as it includes 4 channels of balanced analog audio, so you can capture and playback all 4 channels of Betacam SP audio at the same time. DeckLink Studio has more analog connections than SD only capture cards and costs hundreds of dollars less!

True Professional Quality Audio
DeckLink Studio features a massive 4 channels of balanced professional analog audio in and out, as well as 2 channels of AES/EBU digital audio in and out, for broadcast quality and sample accurate AV sync. DeckLink Studio also includes a sample rate converter on the AES/EBU input, so you can connect to any digital audio device, from either synchronized or un-synchronized sources. DeckLink Studio includes 8 channels of SDI embedded audio that are perfect for Final Cut Pro and Premiere Pro's multi channel audio support. When working with multi channel audio, DeckLink Studio can switch it's analog audio output 3 and 4 to AES/EBU digital audio outputs. That means you get an extra 2 digital audio outputs for a total of 6 channels of AES/EBU digital audio out! DeckLink Studio is perfect for 5.1 surround sound editing and multi language digital audio monitoring.

High Quality
For highest quality digital broadcast workflows, DeckLink cards include incredible 10 bit SD/HD-SDI video with low SDI jitter, combined with AES/EBU digital audio with a high performance linear phase digital filtered sample rate converter. DeckLink Studio features a total of 10 on board power supplies to isolate high precision analog electronics from digital noise, so you get pristine quality analog video and audio. Only DeckLink cards provides all the quality you need for the most demanding broadcast environments and ensures your work retains that wonderful film look!

More HD Real Time Effects
DeckLink's super fast PCI Express connection plugs directly into Final Cut Pro and Premiere Pro's real-time effects processing engine. Unlike FireWire products, you get all your CPU time dedicated to more multi layer HD real-time effects. Only DeckLink Studio's high speed PCI Express lets you upgrade to HD without limiting your HD real-time effects! The higher speed of PCI Express easily handles both compressed and uncompressed video file formats, such as ProRes(Mac), DVCPro HD, JPEG, DV, HDV playback, uncompressed 8 bit and uncompressed 10 bit. 1 Lane PCI Express also allows DeckLink Studio to work in lower cost computers and is fully compatible with 1, 4, 8 and 16 lane PCI Express slots.

Mac OS X™, Windows™ and now Linux™!
DeckLink cards are fully compatible with Mac OS X™, Windows™ and now Linux™! The new Media Express 2.0 is included, so you can capture and playback DPX, DVI and QuickTime media all platforms with full compatibility! Perfect for 3D graphics work or use our Linux™ SDK to develop your own solutions.

Built in SD Keyer!
When working in standard definition, DeckLink cards include the most amazing quality digital internal keyer that lets you key RGBA images over the video input. That's a total keying solution built right into DeckLink Studio. The built in keyer works great when used with Blackmagic Design's included Photoshop plug-ins, or even with RGBA animated video software for keying. If you want to perform keying externally, such as an external video mixer, then just select external key and DeckLink Studio will output the key channel on the SD-SDI output, with the fill channel on the main SD/HD-SDI output.

Compatible with Popular Video Software
DeckLink cards are perfect for editing, broadcast graphics and digital effects work with built in support for your favorite video software such as Apple Final Cut Pro™, Adobe Premiere Pro™, Adobe After Effects™, Adobe Photoshop™, eyeon Fusion™ and many more. DeckLink includes plug ins for Photoshop so you can capture and output frames directly from within Photoshop. Real-time playback from Adobe After Effects is supported so you can live preview your animations on your broadcast monitor. For ultimate flexibility, you can install on Windows XP™, Windows Vista™, Windows 7™ and Intel-based Mac Pro systems and instantly switch between 1080i, 1080p and 720p formats in HD, or NTSC and PAL formats for worldwide compatibility.

Loads of Free Software Utilities
DeckLink cards include the Media Express deck control software which lets you control a deck remotely via RS-422 for capture and playback of DPX, AVI and QuickTime™ clips with timecode accuracy. Media Express is supported on Mac OS X™, Windows™ and Linux™. To help set up high speed disk arrays for uncompressed 10 bit HD editing, DeckLink includes Blackmagic Disk Speed Test™ software that checks your disk array and gives you an easy to understand speed test with the results in video frames per second!

DeckLink series cards work with most video software and has special support for some of the most popular features in leading software applications. Check out how DeckLink cards enhance some of the industry's best software.

Editing on Mac OS X™ with Final Cut Pro™
Edit in Final Cut Pro™ while using the highest quality 10 bit HD-SDI video connection to HD decks including, HDCAM™, HD-D5™ and DVCPRO HD™, as well as SD decks such as Digital Betacam™ when using DeckLink Studio and DeckLink SDI models. DeckLink support for Final Cut Pro™ allows you to batch capture from decks and play back the timeline with RT Extreme™ real-time effects, all with absolute sample accurate AV sync. DeckLink cards support many of the advanced Final Cut Pro™ features such as 10 bit rendering, RT Extreme™, multi channel audio, deck control, support for JPEG, DV, DV50, DV100, 8 and 10 bit uncompressed media and more.

DeckLink Studio and DeckLink SDI are qualified by Apple™ for Final Cut Pro™ compatibility. Blackmagic Design works closely with Apple™ on developing our QuickTime™ drivers, so you know you're getting the best combination for high end editing. DeckLink cards can even edit with DVCPRO HD™ media for down converted playback with RT effects.

Editing with Adobe® Premiere Pro®
DeckLink cards are the highest quality editing solution for Adobe Premiere Pro and included with DeckLink are a full suite of Premiere Pro plug-ins including deck control. You get a complete solution with nothing extra to buy. Play out through the DeckLink video output using 8 and 10 bit uncompressed AVI and QuickTime™ files, as well as 32 bit TARGA and BMP image sequences which can all be played back on the same Premiere Pro timeline without rendering.

DeckLink fully supports Premiere Pro's maximum 6 channels of audio capture and playback via HD/SD-SDI, great for 5.1 surround sound editing. DeckLink also includes an ASIO compliant audio driver for multi channel audio. QuickTime™ uncompressed 8 and 10 bit files, from Mac OS X™ systems, can also be played back for cross-platform media sharing!

DeckLink cards are certified by Adobe for Premiere Pro compatibility. Blackmagic Design works closely with Adobe on developing our Premiere Pro drivers, with features including RT effects, RS-422 deck control, and frame accurate batch capture. This assures a fully professional solution.

Online JPEG for Adobe Premiere Pro
On Windows, Blackmagic's full resolution (1920 x 1080) professional quality compressed HD codec can capture JPEG AVI files in real-time using Premiere Pro. Unlike HDV and DVCPRO HD which uses reduced resolution 1440x1080 video, Blackmagic's Online JPEG maintains the full resolution 1920x1080 resolution of HD video without the huge file size of uncompressed HD video. Blackmagic's Online JPEG is so efficient that full motion 1080i HD video can be recorded at only 12 MB per second vs. a massive 119 MB per second for uncompressed HD video.

Blackmagic's compressed files are so compact, that 1080 HD video can be captured to a single internal hard disk or easily transported on a portable Firewire drive! Online JPEG is compatible with Premiere Pro and After Effects and can even be used by editors without Blackmagic capture cards making it one of the most versatile compressed codecs available.

Broadcast Graphic Design with Adobe® After Effects®
Adobe After Effects is one of the most popular tools for broadcast graphics and animation, and DeckLink has special features to make sure you can build a complete integrated solution with this great app! After Effects is fully QuickTime™ based, so it works with all DeckLink media. On Windows™ you can also open and render Blackmagic uncompressed 10 and 8 bit AVI and QuickTime™ files too. Files can be dropped into Final Cut Pro™ or Premiere Pro timelines without rendering, so you can move media between tools. DeckLink provides full RAM preview playback out of the DeckLink output, so you can always see what you're working on.

If you're not doing editing, then you can use the included Blackmagic Deck Control application to remotely capture and output QuickTime™ clips with timecode accuracy. Use the Blackmagic Software Codec so you can work with media even when a DeckLink card is not installed on the system. There is no better solution for using After Effects for high end work than DeckLink Studio!

Broadcast Paint with Adobe® Photoshop®
Adobe Photoshop is the standard for graphics. When used in television you can finally bring in some of the world's most talented designers into your workflow, without needing to retrain them on custom paint systems. DeckLink cards include Photoshop plug-ins, so you can directly capture and output still frames from within the Photoshop application itself.

If you're working with 10 bit HD/SD-SDI, you can even import and export 16 bit Photoshop™ images for full quality. Use DeckLink Studio keying to export and key standard definition graphics from the video input using Photoshop alpha channels. You can also use Blackmagic Deck Control to capture the still images from broadcast decks. Outputting Photoshop graphics from DeckLink cards lets you see the correct color and the effects of video interlace and field movement. DeckLink cards use unity gain on, so you can't get illegal 100% RGB video levels eliminating surprises when graphics are output to tape!

Compositing and Effects with Autodesk Combustion™
DeckLink cards supports Autodesk Combustion™ and let you build an independent workstation with full-RAM-preview playback as well as support for Quick Capture on both Mac OS X™ and Windows™. Use Blackmagic Deck Control to capture and output clips to broadcast decks with time code accuracy, and because DeckLink HD cards use standard QuickTime™ and AVI media files, you can open clips from both platforms for full media sharing.

Real-time RAM preview is supported directly from the DeckLink Studio video outputs, so you can see what your video is going to look like before rendering. You can always see a live preview as you're working and adjusting layers and settings for a fully interactive workflow.

DeckLink cards are compatible with most popular software for video, and we are constantly working with manufacturers to add updates to support wonderful new features as they're released. Unlike other systems, your DeckLink HD card will always evolve and increase in features as new software is released. That's why DeckLink HD cards are the world's highest selling uncompressed video cards.

DeckLink cards are designed for anyone who needs a bridge between the 'SD and HD worlds' with maximum analog compatibility for the widest range of video equipment. Check out DeckLink for your facility today!
